A tree data structure is a hierarchical collection of nodes, typically visualized with a root at the top. Trees are typically used for representing relationships, hierarchies, and facilitating efficient data operations.

Core Definitions

• Node: The basic unit of a tree that contains data and may link to child nodes.
• Root: The tree’s topmost node; no nodes point to the root.
• Parent / Child: Nodes with a direct connection; a parent points to its children.
• Leaf: A node that has no children.
• Edge: A link or reference from one node to another.
• Depth: The level of a node, or its distance from the root.
• Height: Maximum depth of any node in the tree.

Key Characteristics

1. Hierarchical: Organized in parent-child relationships.
2. Non-Sequential: Non-linear data storage ensures flexible and efficient access patterns.
3. Directed: Nodes are connected unidirectionally.
4. Acyclic: Trees do not have loops or cycles.
5. Diverse Node Roles: Such as root and leaf.

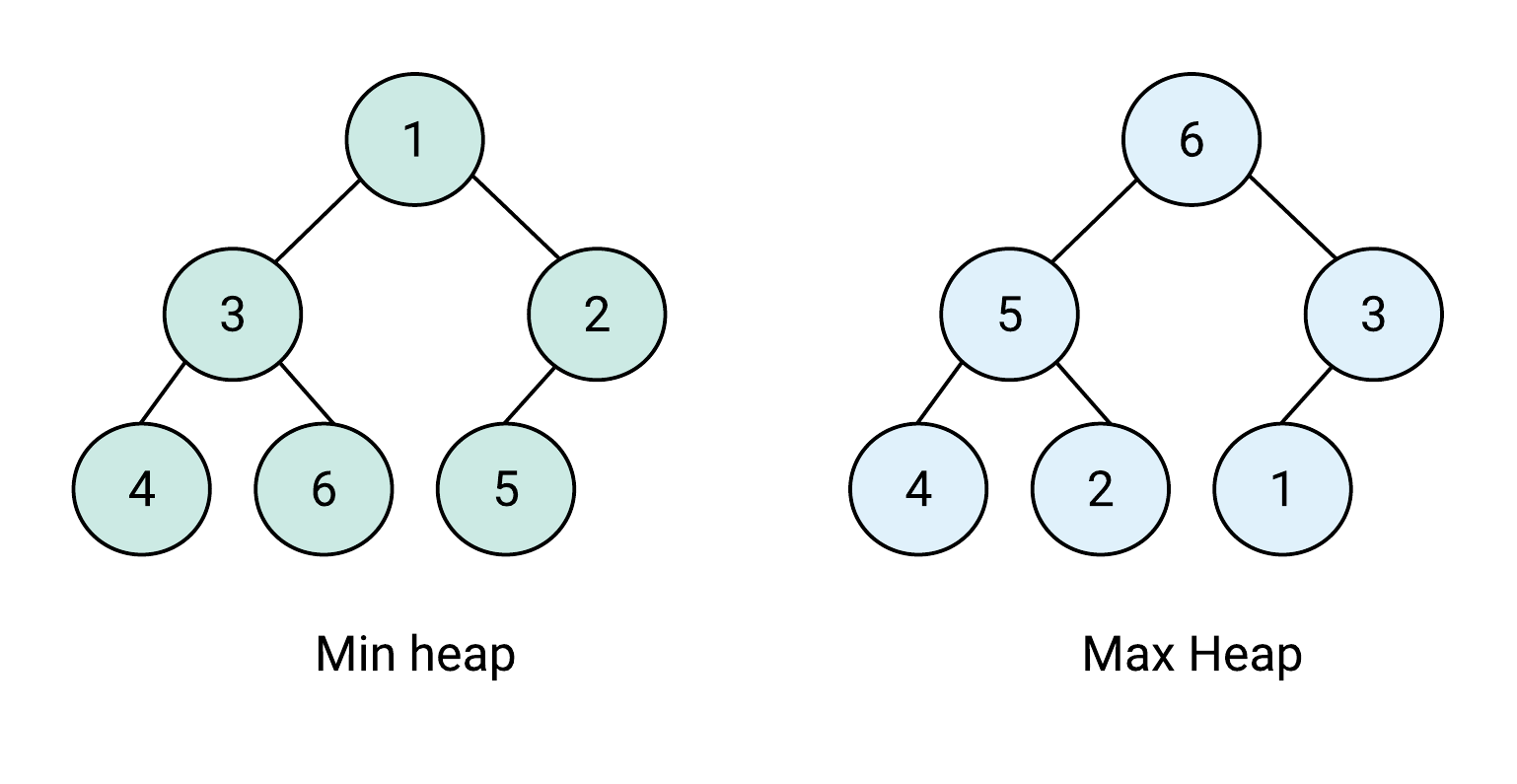

Visual Representation

Common Tree Variants

• Binary Tree: Each node has a maximum of two children.
• Binary Search Tree (BST): A binary tree where each node’s left subtree has values less than the node and the right subtree has values greater.

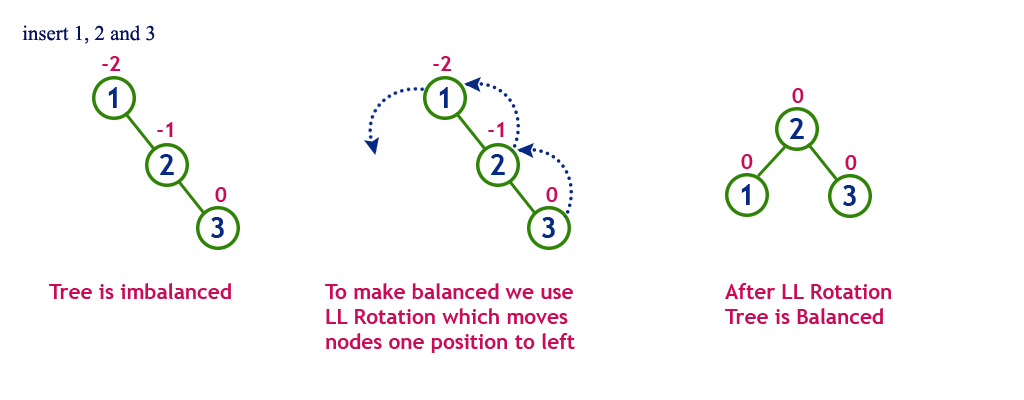

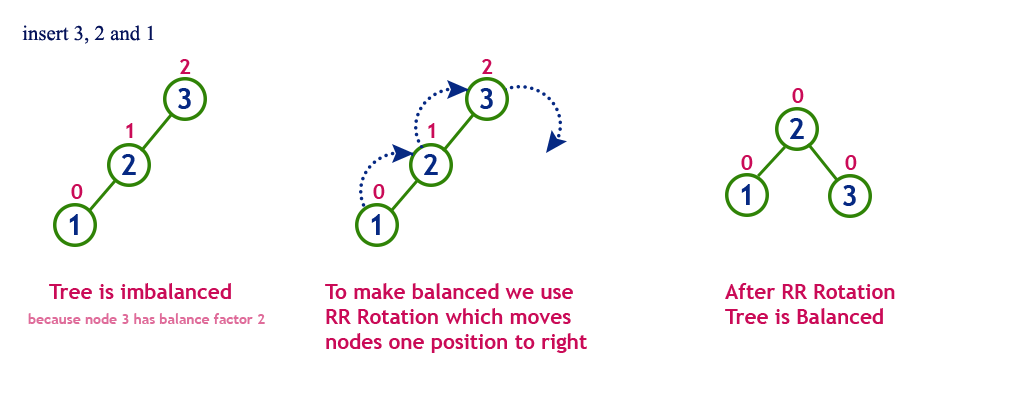

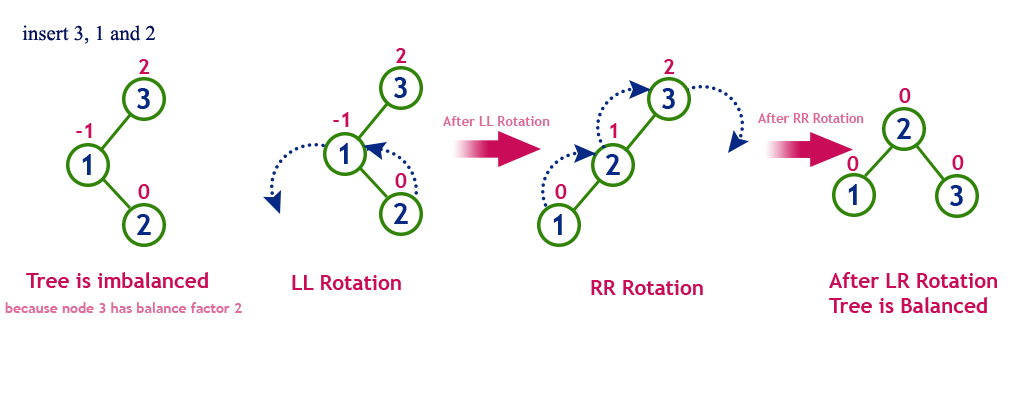

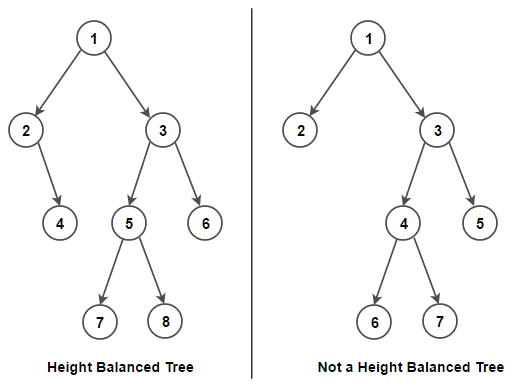

• AVL Tree: A BST that self-balances to optimize searches.
• B-Tree: Commonly used in databases to enable efficient access.
• Red-Black Tree: A BST that maintains balance using node coloring.
• Trie: Specifically designed for efficient string operations.

Practical Applications

• File Systems: Model directories and files.
• AI and Decision Making: Decision trees help in evaluating possible actions.
• Database Systems: Many databases use trees to index data efficiently.

Tree Traversals

Depth-First Search

• Preorder: Root, Left, Right.
• Inorder: Left, Root, Right (specific to binary trees).
• Postorder: Left, Right, Root.

Breadth-First Search

• Level Order: Traverse nodes by depth, moving from left to right.

Code Example: Binary Tree

Here is the Python code:

class Node:
    def __init__(self, data):
        self.left = None
        self.right = None
        self.data = data

# Create a tree structure
root = Node(1)
root.left, root.right = Node(2), Node(3)
root.left.left, root.right.right = Node(4), Node(5)

# Inorder traversal
def inorder_traversal(node):
    if node:
        inorder_traversal(node.left)
        print(node.data, end=' ')
        inorder_traversal(node.right)

# Expected Output: 4 2 1 3 5
print("Inorder Traversal: ")
inorder_traversal(root)
