Data modeling is a structured approach to designing a data storage system, whether it’s a database, data warehouse, or any other data repository. It serves as a blueprint for organizing and storing data effectively.

Key Objectives of Data Modeling

• Structural Organization: Establishing the relationships, constraints, and attributes of the data.
• Standardization: Ensuring uniformity, consistency, and data quality.
• Integrity: Safeguarding against data anomalies, duplications, and inconsistencies.
• Data Governance: Enforcing data security, privacy, and regulatory compliance.

Types of Data Models

Logical Data Model

Presents the data from a “business rules” or semantic perspective, focusing on what data is (rather than its storage or structure).

Physical Data Model

Translates the logical model into a representation that considers the implementation details. It’s more concerned with the “how” of data storage.

Conceptual Data Model

At the highest level, this model offers a broad view of data elements and their relationships. It’s more about understanding the business or project domain before diving into specifics of implementation.

Relational Data Model

It revolves around tables, with emphasis on how data points relate to one another.

NoSQL Data Model

There isn’t a one-size-fits-all approach in NoSQL, and the modeling can significantly vary with the specific NoSQL database type (document, key-value, graph, etc.). For instance, in the document model, data can be nested under a document, and it’s usually self-contained. In contrast, graph models center around nodes and edges to represent relationships, and key-value stores are much more simplistic in that they link single keys to single values.

NoSQL databases often offer more flexibility here, so while it can be freeing not to have rigid schemas, it’s still crucial to establish at least a baseline structure to ensure coherent data storage.

Data models play a vital role in structuring and representing information. They can be organized into three main types: conceptual, logical, and physical.

Conceptual Data Model

A conceptual data model focuses on the big-picture. It identifies key business concepts and the relationships between them, without much detail. This type of model is primarily used for getting management and stakeholders on the same page about what the data represents.

Logical Data Model

A logical data model delves deeper into the structure of the data, focusing on business rules rather than technical ones. It identifies attributes for each entity and the relationships between entities. This type of model is free from specifics about how the data will be stored or its physical characteristics.

Physical Data Model

A physical data model deals with the specific implementation of the data design. It organizes data in a way that makes it efficient for a particular database management system (DBMS) or storage technology. It includes details such as data types, indexes, and partitions.

Relationship Between the Three Models

The three models form a progressive framework. Each subsequent model is built upon the foundations of the one before it.

1. Conceptual models establish the high-level view of the data, focusing on business understanding.
2. Logical models add structure by defining the relationships and attributes the data will have.
3. Physical models then take this structured data view and implement it in a specific storage or processing environment.

This framework allows for effective collaboration between different teams involved in data management, ensuring that everyone has a unified understanding of the data from both a business and technical perspective.

Data modeling is key to designing efficient and structured databases. The process typically follows a top-down approach, beginning with creating an Entity-Relationship Diagram (ERD) to visualize the data model, and then implementing the model in a database management system.

Key Steps in the Data Modeling Process

1. Requirement Analysis

   • Gather and understand the data requirements from stakeholders.

2. Conceptual Data Modeling

   • Create a high-level data model using E-R diagrams to identify the core entities, their relationships, and attributes.

3. Logical Data Modeling

   • Define the structure of the database without considering specific database management systems (DBMS).
   • This step focuses on creating normalized tables, attributes, and establishing data integrity rules.

4. Physical Data Modeling

   • Implement the designed model in a chosen DBMS.
   • This step involves creating tables, specifying data types, keys, indexes, and relationships.

Tools for Data Modeling

• ERD Tools: Software like Lucidchart, draw.io, or enterprise solutions such as ER/Studio and PowerDesigner, are commonly used for creating ERDs.
• Data Modeling Tools: These tools cover the complete data modeling lifecycle, from initial design to implementation. Examples include Microsoft Visio, Oracle SQL Developer Data Modeler, and SAP Sybase PowerDesigner.

Code Example: DDL generated from data modeling tools

Here is an example for code creation in Python:

# Define the table creation SQL from your data modeling tool.
table_creation_sql = """
CREATE TABLE `order` (
  `order_id` int(11) NOT NULL,
  `order_date` date NOT NULL,
  `customer_id` int(11) NOT NULL,
  PRIMARY KEY (`order_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
"""

# Execute the SQL using your preferred Python-to-DB module
# (e.g., pymysql, sqlalchemy, etc.).
# This will create the table in your database.
# ...

In a relational database, data is organized into tables, and the way tables relate to each other establishes different types of relationships.

Types of Relationships

1. One-to-One (1:1)

   • This is a rare relationship where each record in Table A links to one and only one record in Table B, and vice versa.
   • Example: A table of students with one unique health record each.

2. One-to-Many (1:M)

   • The most common relationship where a record in Table A can relate to one or several records in Table B, but any single record in Table B links back to only one record in Table A.
   • Example: A customer can have multiple orders, but each order is associated with only one customer.

3. Many-to-Many (M:N)

   • This type of relationship initially presents itself as 1:M on both sides. To handle M:N relationships, a special table, known as a “junction table” or “associate table,” is introduced. This table typically consists of composite primary keys, one from each of the two related tables.
   • Example: In a library database, a book can have multiple authors, and an author can write multiple books. The relationship between the “Book” and “Author” tables is M:N, so a junction table, say “Book_Author,” is created.

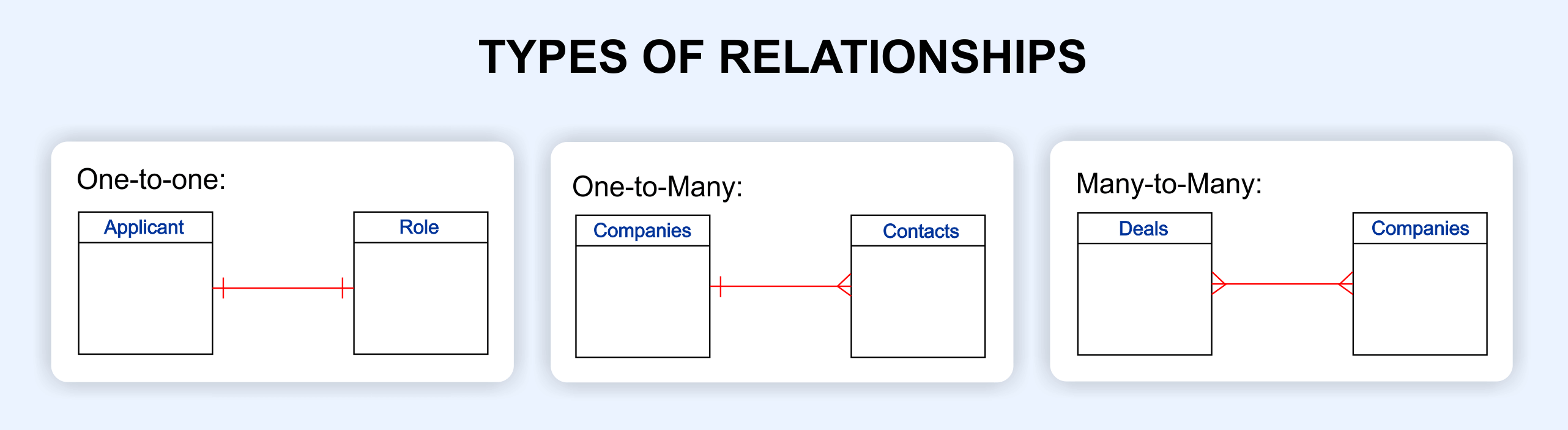

Visual Representation

Normalization is a set of techniques used in database design to ensure data integrity, reduce redundancy, and improve overall performance. It involves structuring data into multiple related tables, each serving a specific purpose.

Key Concepts

• Primary Keys: Unique identifiers for each record.
• Foreign Keys: Links tables, establishing relationships.
• Atomicity: Ensuring each data field is singular, not compound.

Why Normalize

• Data Consistency: Avoids contradictory or outdated information.
• Minimizes Redundancy: Saves storage and prevents update anomalies.
• Simplifies Queries: Easier to construct and understand.

Levels of Normalization

1. First Normal Form (1NF): Data is atomic.

2. Second Normal Form (2NF): In 1NF, and all non-key attributes are fully functionally dependent on the primary key.

3. Third Normal Form (3NF): In 2NF, and there are no transitive dependencies.

   Beyond 3NF:

   • Boyce-Codd Normal Form (BCNF): A specialized version of 3NF where each determinant is a candidate key.
   • Fifth Normal Form (5NF): Achieved through decomposition to the point where no further decomposition is possible, ensuring “join dependency” consistency.

OLTP (Online Transaction Processing) and OLAP (Online Analytical Processing) are two paradigms that cater to distinct data-handling needs.

OLTP: Real-Time Transaction Processing

• Focus: OLTP systems center on day-to-day transactions, serving as a live data nerve-center for activities like order processing, banking transactions, and online bookings.
• Data Freshness: The emphasis is on real-time data updates.
• Query Complexity: Typically standardized, simple queries.
• Database Design: Normalized to minimize redundancy.
• Example Use-cases: Point of Sale (POS) systems, online banking, ticket booking platforms.

OLAP: Analytics for Decision Making

• Focus: OLAP systems revolve around extracting insights from data, supporting tasks such as reporting, data mining, and business intelligence.
• Data Freshness: Data is periodically refreshed, often in near real-time, and sometimes in scheduled intervals.
• Query Complexity: Ad-hoc, complex queries to analyze large data sets.
• Database Design: Denormalized to optimize for query performance.
• Example Use-cases: Business reporting, data analysis, market research.

Key Distinctions

• Data Model: OLTP focuses on a detailed, current-state data model, while OLAP adopts a summarized, historical data model for analysis.
• Query Optimization: OLTP prioritizes quick data modifications, whereas OLAP focuses on efficient, often parallelized, read-heavy operations.
• Data Consistency: In OLTP, transactions need to be ACID-compliant; in OLAP, eventual consistency is often acceptable.

Unified Architectures: HTAP and Operational Data Lakes

Technological advancements like Hybrid Transactional/Analytical Processing (HTAP) and Operational Data Lakes aim to merge OLTP and OLAP functionalities into unified systems, catering to both real-time transactional needs and analytical insights.

The Star Schema is a data modeling technique optimized for data warehousing and analytics. It structures data into a central fact table and associated dimension tables, forming a star-like visual pattern.

Key Elements

• Fact Table: Contains business metrics or facts that are typically additive (e.g., sales revenue). Connected directly to dimension tables.

• Dimension Tables: Each table represents a business context or dimension, such as time, product, or customer.

Benefits

• Simplicity: The star schema is intuitive and easy to understand, making data accessible to business users.

• Query Performance: The structure supports fast, star-joins, requiring only straightforward join operations.

When to Use Star Schema

The star schema is ideal for organizations focused on standardized reporting and predictable query patterns, such as:

• Data Warehousing: It’s a popular choice for dedicated analytical databases.

• Ad Hoc and Standardized Reporting: Effective for reporting tools and analysts running known, repetitive queries.

Code Example: Star Schema

Here is the Python code:

# Fact Table: Sales
sales = {
    'date_id': [1, 2, 3],
    'product_id': [101, 102, 103],
    'customer_id': [200, 201, 202],
    'amount_sold': [50, 30, 40]
}

# Dimension Table: Date
date = {
    'date_id': [1, 2, 3],
    'date': ['2023-01-01', '2023-01-02', '2023-01-03'],
    'day_of_week': [1, 2, 3],
    'month': [1, 1, 1],
    'quarter': [1, 1, 1]
}

# Dimension Table: Product
product = {
    'product_id': [101, 102, 103],
    'product_name': ['Product1', 'Product2', 'Product3'],
    'category_id': [301, 302, 303]
}

# Dimension Table: Customer
customer = {
    'customer_id': [200, 201, 202],
    'customer_name': ['John', 'Alice', 'Bob'],
    'city': ['New York', 'San Francisco', 'Los Angeles']
}

In data warehousing, Slowly Changing Dimensions (SCDs) are a method for handling data that changes over time, especially useful for maintaining historical records alongside new ones.

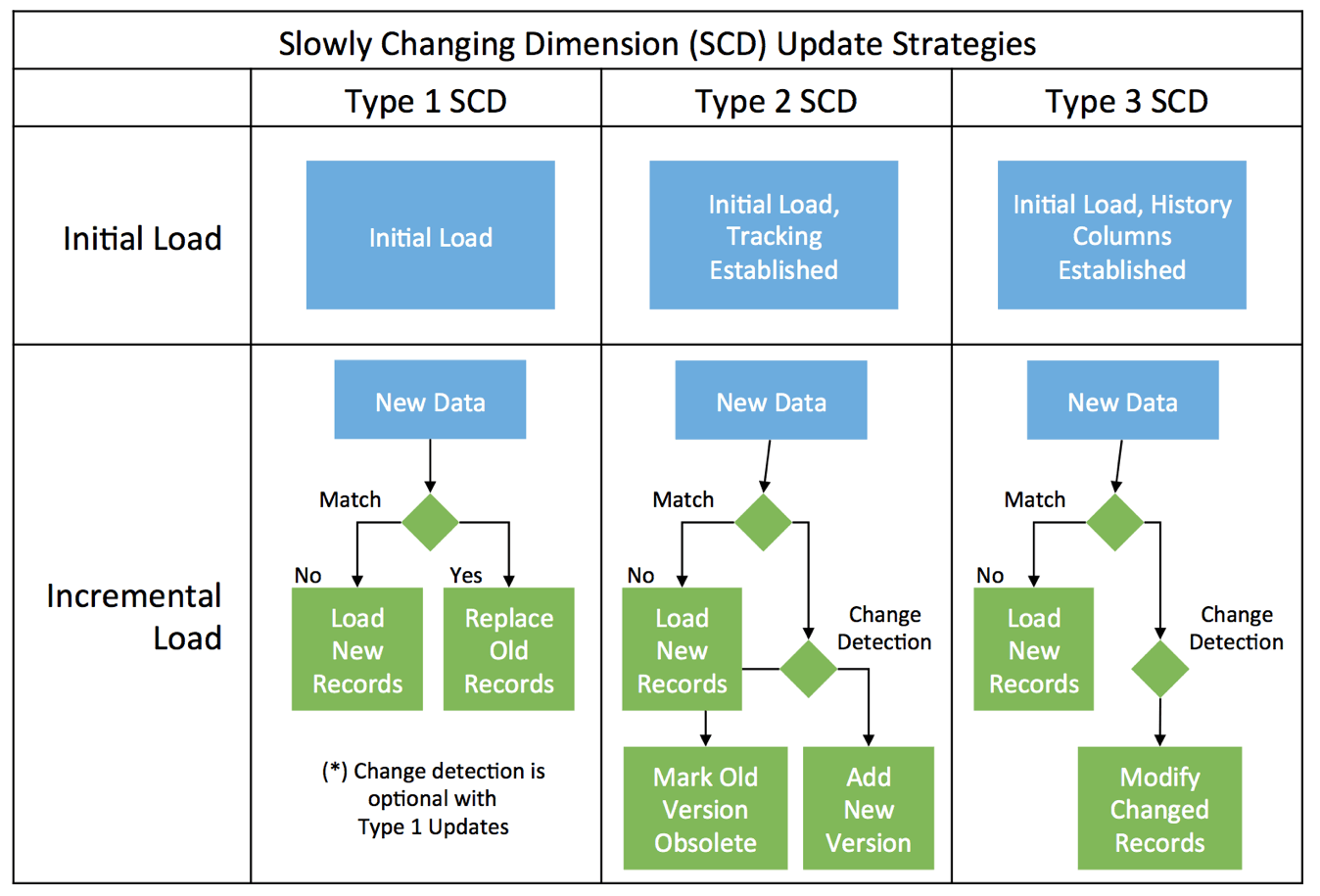

Types of Slowly Changing Dimensions

There are three recognized types of SCD, each optimized for a specific data management use case:

1. SCD Type 1
   This straightforward approach overwrites historical data with new information. It does not maintain a version history, making it suitable for scenarios that do not require tracking changes.



2. SCD Type 2
   Here, new data gets its own record, while the existing record is marked as “expired.” This method retains historical information and is useful for tracking changes over time.



3. SCD Type 3
   This method adds new columns to the dimension table to store certain historical data, while keeping one main column for the current value. It strikes a balance between history retention and table simplicity.



Common Challenges

• Performance: Each SCD method can introduce different performance considerations.

• Data Consistency: Maintaining consistency, especially when dealing with concurrent updates, is crucial.

• Query Complexity: The method chosen can impact the complexity of queries that need to be constructed.

Code Example: SCD Type 1

Here is the Python code:

# Sample using SCD Type 1
class ProductDimensionSCD1:
    def update_product(self, product_id, new_attributes):
        # Update existing product with new_attributes
        pass

# Usage
product_dim_scd1 = ProductDimensionSCD1()
product_dim_scd1.update_product(123, {'name': 'New Name', 'category': 'New Category'})

Code Example: SCD Type 2

Here is the Python code:

# Sample using SCD Type 2
from datetime import date

class ProductDimensionSCD2:
    def __init__(self):
        self.products = {}
        self.product_counter = 0

    def update_product(self, product_id, new_attributes):
        product = self.products[product_id]
        product['current'] = False  # Mark current product as expired
        new_attributes['start_date'] = date.today()
        new_attributes['end_date'] = None  # End date is not set for current record
        self.product_counter += 1
        self.products[self.product_counter] = {
            **new_attributes,
            'current': True  # Set the new product record as current
        }

    def add_product(self, attributes):
        self.product_counter += 1
        attributes['start_date'] = date.today()
        attributes['end_date'] = None
        attributes['current'] = True
        self.products[self.product_counter] = attributes

# Usage
product_dim_scd2 = ProductDimensionSCD2()
product_dim_scd2.add_product({'name': 'Product A', 'category': 'Category 1'})
product_dim_scd2.update_product(1, {'name': 'Product A Renamed', 'category': 'Category 2'})

Code Example: SCD Type 3

Here is the Python code:

# Sample using SCD Type 3
class ProductDimensionSCD3:
    def update_product(self, product_id, new_attributes):
        # Update existing product, and also update the historical columns
        pass

    def get_product_details_over_time(self, product_id, date):
        # Retrieve product details for a specific date, leveraging the additional historical columns
        pass

# Usage
product_dim_scd3 = ProductDimensionSCD3()
product_dim_scd3.update_product(123, {'name': 'New Name', 'effective_date': date.today()})

In a star schema, fact tables and dimension tables play distinct roles.

• Fact tables record specific metrics or measurements, and are linked to multiple dimension tables.
• Dimension tables provide context to the measurements in the fact table and are typically descriptive in nature.

Key Features

Fact Table

• Grain: The granularity of a fact table is typically at a detailed level, capturing specific metrics like sales amount or quantity.
• Measures: Numerical quantities or metrics that can be aggregated, e.g., sales amount.
• Relationships: Many-to-many relationships with dimension tables.

Dimension Table

• Grain: Dimension tables often have a broader granularity, capturing descriptive attributes.
• Attributes: Descriptive attributes that provide context or details about a specific dimension, e.g., product name, customer details.
• Relationships: Many-to-one or one-to-one relationship with fact tables.

Common Examples

In a sales context:

• Fact Table: records individual sales transactions.
• Dimension Tables: Provide context about the product (e.g., product name, category), the customer (e.g., customer details), time (e.g., date of the sale), and potentially others like store/location.

Schemas

• Star Schema: Consists of a central fact table with dimension tables radiating from it. This design is intuitive and optimized for analytical queries.
• Snowflake Schema: Similar to a star schema but with the additional layer of normalized dimension tables. This design offers better space efficiency at the cost of potential increased query complexity.
• Galaxy Schema (Constellation Schema): Contains multiple fact tables that share dimension tables.

In data modeling, surrogate keys play a crucial role in ensuring efficient data management and fostering better data quality. Let’s look at their key functions:

Ensuring Uniqueness

Surrogate keys serve as unique identifiers for each record in a table. This is especially useful in situations where it might be challenging to establish uniqueness based on the natural characteristics of the data (natural keys).

For instance, in a table that tracks customer information, using the customer’s email as a natural key may not be sufficient, as customers could potentially change their email addresses.

Enhancing Performance

Surrogate keys can significantly improve the performance of database operations, particularly in situations where data might be updated frequently.

This is because using a surrogate key means there’s no need to modify related records or tables when data in the original table changes. This “isolation” of the key can lead to better performance, especially in scenarios where the tables are linked to numerous other tables or records.

Simplifying Relationships

Surrogate keys can make it easier to manage relationships between tables. Instead of using multiple columns as a composite primary key, a single surrogate key column can be used, leading to simpler and more intuitive.

Improving Data Quality

Surrogate keys can help maintain data consistency and referential integrity in databases. They make it less likely that records will be accidentally duplicated or that relationships between records in different tables will be broken. This is especially important in larger databases with multiple contributors.

Supporting ETL Processes

During data transformation processes, surrogate keys provide a stable reference point for identifying, updating, or deleting records. This characteristic is beneficial in data warehousing and business intelligence, where data often undergoes extensive cleaning, integration, and transformation.

Use Case: Online Retail

In an online retail setting, a product catalog might be managed using a surrogate key in the “Products” table. This key would then be referenced in other tables, like “Sales” and “Inventory,” to establish and maintain relationships.

A data warehouse is a centralized repository that allows for data consolidation from a variety of sources. It is specifically designed for query and analysis rather than transaction processing. Let’s look at its key characteristics.

Key Characteristics

1. Subject-Oriented: The data warehouse is organized to deliver information on specific subject areas, or domains, such as sales, inventory, or marketing.

2. Integrated: It ensures that data from multiple sources is consistently formatted and standardized. This guarantees that the data is reliable and can be used for meaningful analysis.

3. Time-Variant: The data warehouse records all changes to data, which makes it possible to construct an understanding of historical trends and behavior over time.

4. Non-Volatile: Data within the warehouse is static, meaning that once it’s in the warehouse, it doesn’t change. Even if the original source of the data is updated, the data within the warehouse remains as it was when it was first loaded.

5. Optimized for Querying and Analysis: Data in a data warehouse is denormalized to improve query performance. This means that redundant data is allowed, and tables are often flattened to reduce the need for complex joins.

6. Data Modeling Emphasis: The focus is on a dimensional modeling with star or snowflake schemas for easy navigation and reporting.

7. Data Loading and Transformation: The ETL (Extract, Transform, Load) process is used to populate the data warehouse, and data is cleansed, de-duplicated, and transformed for reporting and analysis.

ETL is a data integration process that extracts data from various sources, transforms it to fit analytical needs, and then loads it into target data warehouses or databases. ETL is often implemented using specialized ETL tools, SQL, or programming languages such as Python or R.

Stages of ETL

1. Extract Data

   • What: Extract data from structured, semi-structured, or unstructured sources such as databases, CRM systems, CSV files, JSON streams, or RESTful APIs.
   • How: Use source-specific tools or scripts.

2. Transform Data

   • What: Clean, structure, and enrich the extracted data to make it ready for analytics. This stage involves data quality checks, data type conversions, handling missing values, deduplication, and more.
   • How: Use programming or SQL scripts, data wrangling libraries (e.g., pandas in Python), or ETL tools.

3. Load Data

   • What: Load the transformed data into a target data warehouse or data store for analytical processing.
   • How: Use SQL INSERT or MERGE statements, ORM tools, or dedicated ETL solutions.

Modern Variants

• ELT: In this process, data is first loaded into the target system and then transformed as required. This approach is more suitable for real-time analytics and when storage on the target system is abundant.
• ETL-t: This approach is very close to the standard ETL process but places emphasis on data quality and testing, typically using a separate or dedicated pipeline for this purpose.

Benefits of ETL

• Data Integration: Merges data from various sources, providing a unified view.
• Data Consistency: Ensures data is consistent and up-to-date across repositories.
• Data Quality: Allows for comprehensive data cleansing and enrichment.
• Historical Tracking: Provides the ability to monitor and analyze changes in data over time.

Code Example: ETL Process

Here is a Python code:

# ETL: Extract
def extract_data_from_api(api_url):
    import requests
    response = requests.get(api_url)
    return response.json()

# ETL: Transform
def transform_data(raw_data):
    import pandas as pd

    # Convert to DataFrame for easier manipulation
    df = pd.DataFrame(raw_data)

    # Data transformations
    df['date'] = pd.to_datetime(df['date'])
    df = df.drop_duplicates()

    return df

# ETL: Load
def load_data_to_database(dataframe, table_name):
    from sqlalchemy import create_engine

    # Initialize database connection
    engine = create_engine('sqlite:///:memory:')

    # Load data into database table
    dataframe.to_sql(table_name, con=engine, if_exists='replace')

# Execute ETL pipeline
source_url = 'https://someapi.com/data'
extracted_data = extract_data_from_api(source_url)
transformed_data = transform_data(extracted_data)
load_data_to_database(transformed_data, 'my_data_table')

ETL (Extract, Transform, Load) processes are essential for data pipelines. While powerful, they present unique challenges.

Common Challenges in ETL Processes

1. Data Quality: ETL is ineffective without high-quality data. Challenges involve detecting and resolving issues like duplicates, inconsistencies, and missing values.

2. Scalability: As data volumes grow, ETL processes must adapt to handle the increased load efficiently.

3. Data Governance and Compliance: ETL systems need to adhere to regulatory requirements such as GDPR and data governance policies within an organization.

4. Real-Time Data Processing: ETL traditionally involves batch processing, but many modern applications require real-time or near-real-time data integration and processing.

5. Data Security: Protecting data throughout the ETL process, from extraction to loading, is critical, especially in cloud environments.

6. ETL Testing and Monitoring: Comprehensive testing and monitoring help ensure ETL processes are robust, accurate, and reliable.

7. Time Sensitivity: Data from different sources might be in different time zones or have timestamp inconsistencies. ETL processes need to harmonize these for meaningful analyses.

8. Metadata Management: Effective data governance and understanding of the data flow require robust metadata management.

9. Legacy System Integration: Data extraction from aging systems with outdated or limited interfaces can be a challenge.

10. Handling Unstructured Data: Beyond the structured data in databases, ETL systems increasingly need to handle semi-structured and unstructured data from sources like documents and web logs.

11. Data Lineage: Maintaining a clear record of a data’s origin, transformations, and destination is crucial for compliance, reproducibility, and trust in analytics.

Code Example: ETL Process Monitoring

Here is the Java code:

import java.util.Date;
import java.util.Timer;
import java.util.TimerTask;

public class ETLProcessMonitor {

    public void startMonitoringETLProcess() {
        Timer timer = new Timer();
        timer.scheduleAtFixedRate(new ETLTask(), new Date(), 60000); // Monitor every 1 minute
    }

    public static void main(String[] args) {
        ETLProcessMonitor monitor = new ETLProcessMonitor();
        monitor.startMonitoringETLProcess();
    }

    private class ETLTask extends TimerTask {
        @Override
        public void run() {
            // Check ETL process status and specific metrics
            System.out.println("Monitoring ETL process...");
            System.out.println("Last successful ETL process: " + new Date());
            // Add checks for data quality, latency, etc.
        }
    }
}

In ETL (Extract, Transform, Load) processes, two common data loading strategies are Full Load and Incremental Load.

Full Load

• Definition: Every time the ETL process runs, it completely replaces the target dataset with fresh data from the source. This means that all existing data in the target is deleted and then the entire dataset is reloaded from the source.

• Use Case: Typically employed when the source data does not have reliable timestamps or incremental identifiers, or when data integrity is compromised.

• Pros: Simplifies the process by not requiring complex data comparison and sync mechanisms.

• Cons: Can be resource-intensive, especially with large datasets, as it involves the overhead of reloading all the data, even if most of it hasn’t changed.

Incremental Load

• Definition: Only new or updated data since the last ETL run is transferred from the source to the target.

• Use Case: Suited for situations where you need to keep existing historical data and append or update it with the latest changes.

• Pros: Efficient for large datasets as it only processes new or changed records, reducing the load on system resources and shortening ETL time.

• Cons: Requires robust mechanisms to identify new and updated records, as well as to handle any potential data consistency issues.

Hybrid Approaches

• Many real-world scenarios may benefit from combining both full and incremental loads. For example, you might initially do a full load to establish a baseline, and then switch to incremental loads for subsequent ETL runs.

Best Practices

• When to Use Each Approach:

  • Full Load: Use when the entire dataset needs to be refreshed, or when it’s simpler and more cost-effective to reload all the data.
  • Incremental Load: Ideal for large datasets when you only need to process new or changed records.

• Often, the choice between the two strategies is driven by the nature of the source data, the business requirements, and the available system resources.

Data staging is an intermediate step in the ETL (Extract, Transform, Load) process. It involves moving data from its source to a temporary storage area before it’s formatted and sent to its destination.

Benefits of Data Staging

• Data Quality Assurance: It allows for comprehensive data cleansing, validation, and de-duplication before the data is loaded into the target system.

• Performance Optimization: Staging data can improve ETL process performance by separating time-consuming transformations from the initial data load.

• Data Consistency: It helps ensure that data loaded into target systems maintains consistency, especially when dealing with multiple source systems.

• Data Recovery and Reusability: Staging provides a safety net, allowing for data recovery in case of loading errors. It also facilitates data reprocessing and the ability to re-load changed data.

Code Example: Basic ETL Process with and without Staging Areas

Here is the Python code:

# Without Staging Area
def basic_etl_process(data_source, data_target):
    raw_data = extract(data_source)
    transformed_data = transform(raw_data)
    load(transformed_data, data_target)

# With Staging Area
def staged_etl_process(data_source, staging_area, data_target):
    raw_data = extract(data_source)
    validate_and_clean(raw_data)  # Initial data checks in the staging area
    load(raw_data, staging_area)

    staged_data = extract(staging_area)
    transformed_data = transform(staged_data)

    load(transformed_data, data_target)  # Final, clean data is loaded to the target

# Example Functions (simulated, without full implementation)
def extract(source):
    return source

def transform(data):
    return data

def load(data, target):
    print(f"Loading data to {target}: {data}")

# Example
print("Basic ETL Process:")
basic_etl_process("database", "data_warehouse")

print("\nETL Process with Staging Area:")
staged_etl_process("database", "staging_area", "data_warehouse")

In the provided example, the staged_etl_process demonstrates the separation of initial loading and transformed data loading steps, utilizing the staging area.
