Backtracking is an algorithmic technique that uses a depth-first search approach to systematically build candidates for solutions. Each potential solution is represented as nodes in a tree structure.

If a particular pathway does not lead to a valid solution, the algorithm reverts or “backtracks” to a previous state. This strategy ensures a thorough exploration of the solution space by methodically traversing each branch of the tree.

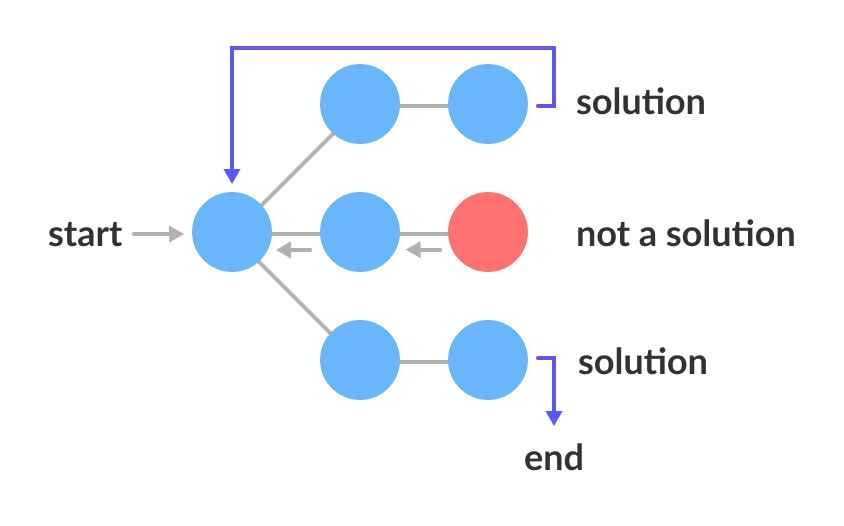

Visual Representation

Practical Applications

1. Sudoku Solvers: Algorithms employ backtracking to determine valid number placements on the grid according to the game’s rules.

2. Boggle Word Finders: Systems utilize backtracking to identify all valid words from a grid of letters in the Boggle game.

3. Network Router Configuration: Optimal configurations in complex networks, like routes and bandwidth allocations, are determined using backtracking.

4. University Timetable Scheduling: Backtracking aids in efficiently scheduling university courses, minimizing overlaps and optimizing resource usage.

5. Interactive Storytelling in VR: In virtual reality games, backtracking navigates and selects optimal story paths based on user decisions, ensuring a cohesive narrative.

Code Example: N-Queens Problem

Place $N$ queens on an $N \times N$ chessboard such that none threaten another.

Here is the Python code:

def is_valid(board, row, col):
    for i in range(row):
        if board[i] in [col, col - (row - i), col + (row - i)]:
            return False
    return True

def place_queen(board, row):
    n = len(board)
    if row == n:
        return True

    for col in range(n):
        if is_valid(board, row, col):
            board[row] = col
            if place_queen(board, row + 1):
                return True
            board[row] = -1  # Backtrack
    return False

def solve_n_queens(n):
    board = [-1] * n
    if place_queen(board, 0):
        print("Solution exists:")
        print(board)
    else:
        print("No solution exists.")

solve_n_queens(4)

The is_valid function evaluates queen placement validity, while place_queen recursively attempts to place all $N$ queens, backtracking when necessary.
