A Convolutional Neural Network (CNN) is a specialized deep-learning system designed to handle visual data by capturing spatial dependencies and hierarchies of features, which are common in images. This model diminishes the requirement for manual feature extraction, making it more efficient than traditional methods such as edge detection and gradient estimation.

Core Components

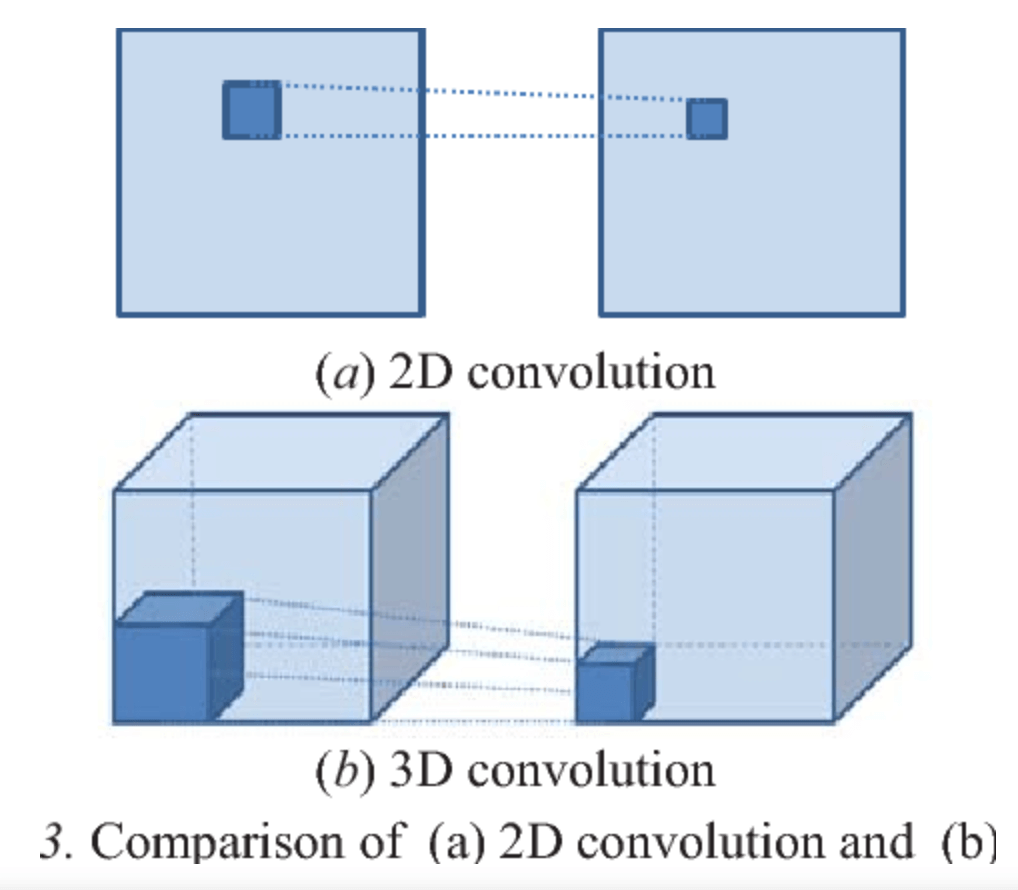

1. Convolutional Layers: These layers apply convolutional filters to extract features or patterns from the input data.

   • Filter: A small, square matrix that identifies specific features, e.g., edges.
   • Feature Map: The result of applying the filter to the input data.

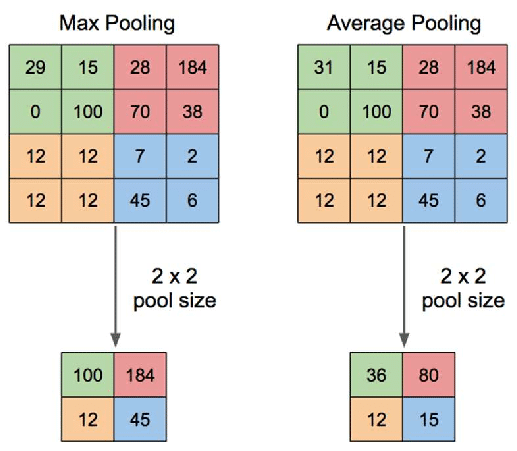

2. Pooling Layers: These layers reduce spatial dimensions by either taking the maximum value from a group of pixels (max-pooling) or averaging them. This process aids in feature selection and reduces computational load.

3. Fully Connected Layers: Also known as dense layers, they process the output of previous layers to make the final classifications or predictions.

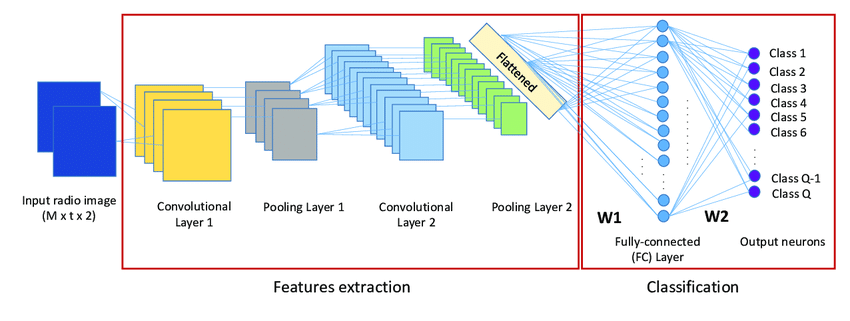

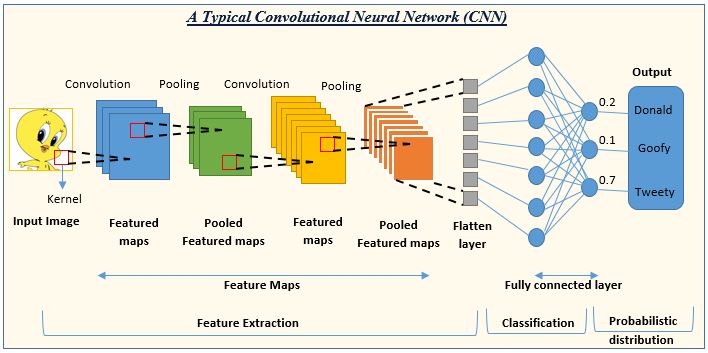

CNN Model Architecture

The typical structure comprises a series of convolutional and pooling layers, followed by one or more dense layers:

• Convolutional-ReLU-Pooling Block: These blocks are stacked to extract increasingly abstract features from the input.

• Fully Connected Layer(s): These layers, placed at the end, leverage the extracted features for accurate classification or regression.

• Output Layer: It provides the final prediction or probability distribution.

Training CNNs

Training a CNN involves:

• Forward Propagation: Data is passed through the network, and predictions are made.

• Backpropagation and Optimization: Errors in predictions are calculated, and the network’s parameters (weights and biases) are updated to minimize these errors.

• Loss Function: The magnitude of error in predictions is quantified using a loss function. For classification tasks, cross-entropy is common.

• Optimizer: Techniques such as stochastic gradient descent are used to adjust weights and biases.

Common Activation Functions

• ReLU (Rectified Linear Unit): $f(x) = \max(0, x)$
• Sigmoid: $f(x) = \frac{1}{1 + e^{-x}}$, primarily used in binary classification tasks.
• Softmax: Used in the output layer of multi-class problems, it transforms raw scores to probabilities.

Regularization Techniques

To prevent overfitting, methods such as dropout and L2 regularization are employed:

• Dropout: During training, a fraction of neurons are randomly set to zero, reducing interdependence.
• L2 Regularization: The sum of the squares of all weights is added to the loss function, penalizing large weights.

Advanced Networks

• LeNet: Pioneering CNN designed for digit recognition.
• AlexNet: Famous for winning the ImageNet competition in 2012.
• VGG: Recognized for its uniform architecture and deep layers.
• GoogLeNet (Inception): Noteworthy for its inception modules.
• ResNet: Known for introducing residual connections to tackle the vanishing gradient problem.

Frameworks & Libraries

• TensorFlow: Provides an extensive high-level API, Keras, for quick CNN setup.
• PyTorch: Favored for its dynamic computational graph.
• Keras: A standalone, user-friendly deep learning library for rapid prototyping.
